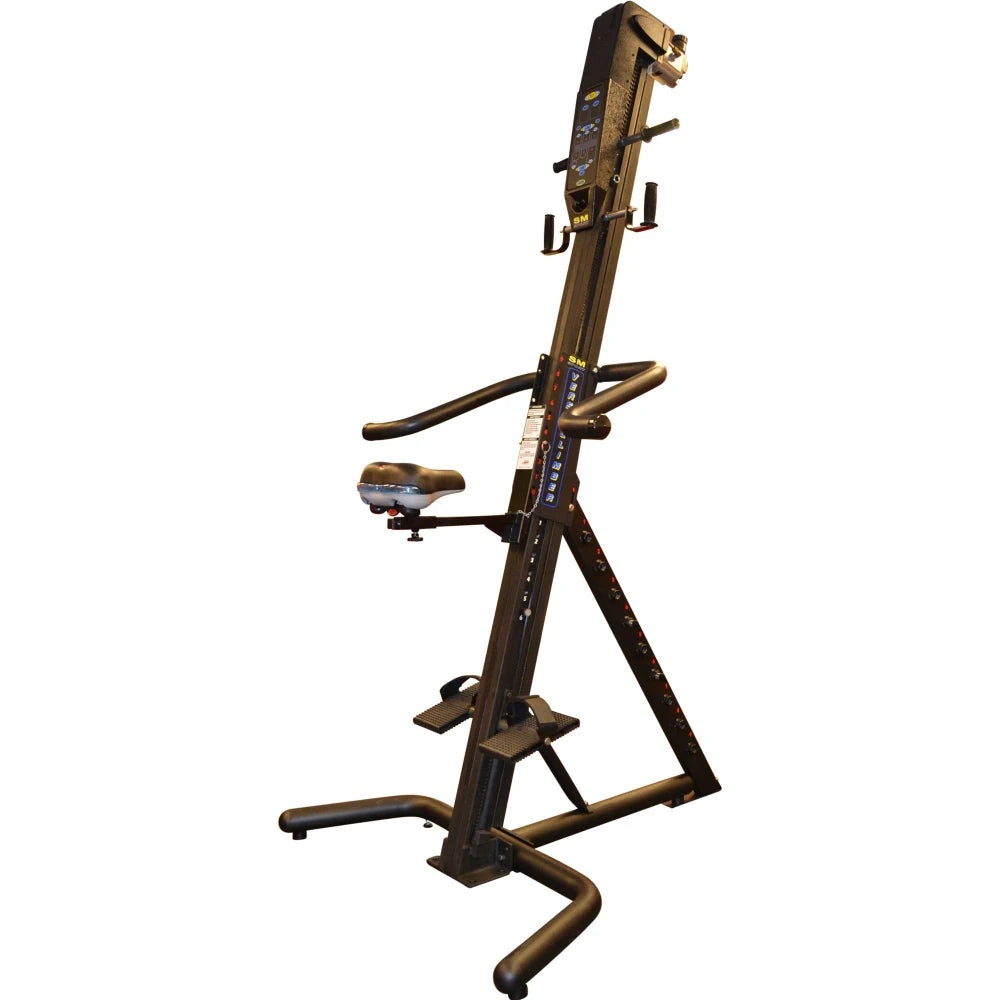

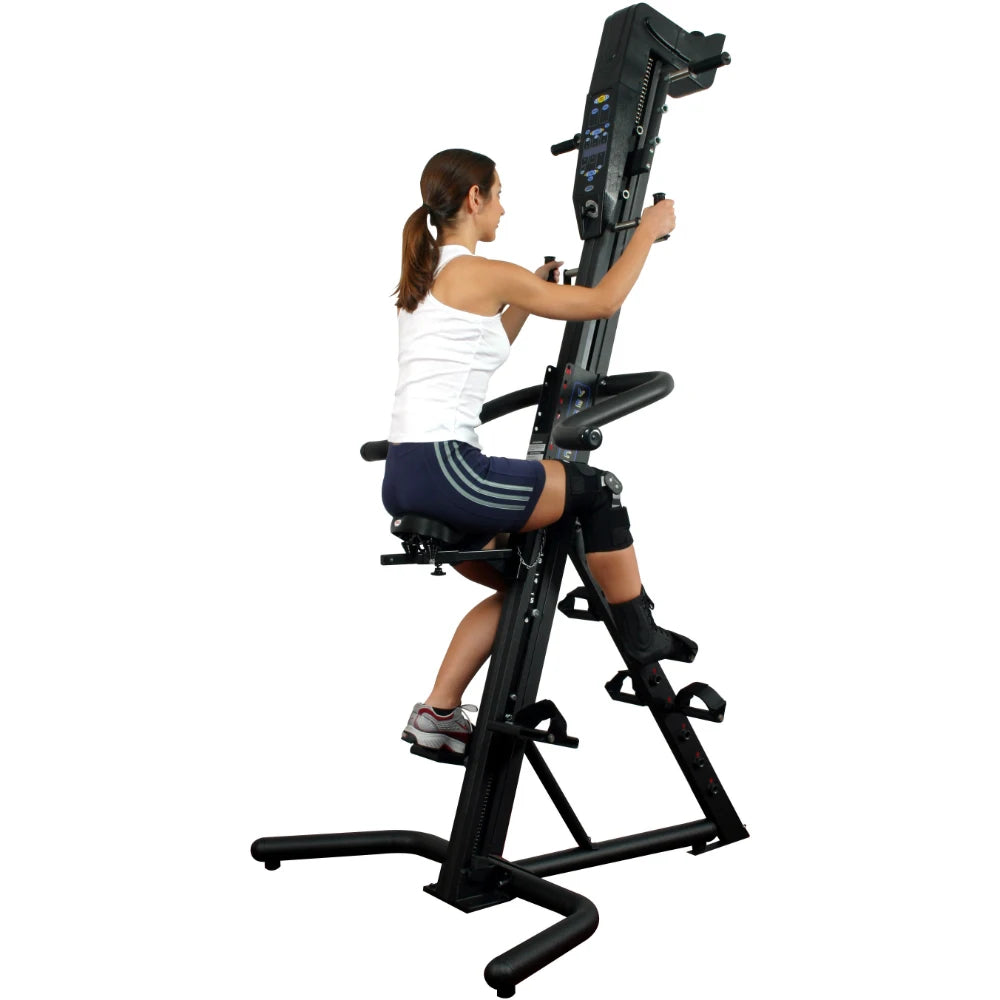

• VersaClimber SMMRM Sports Rehab – rehab climber front view with supportive handles and seat for therapeutic training

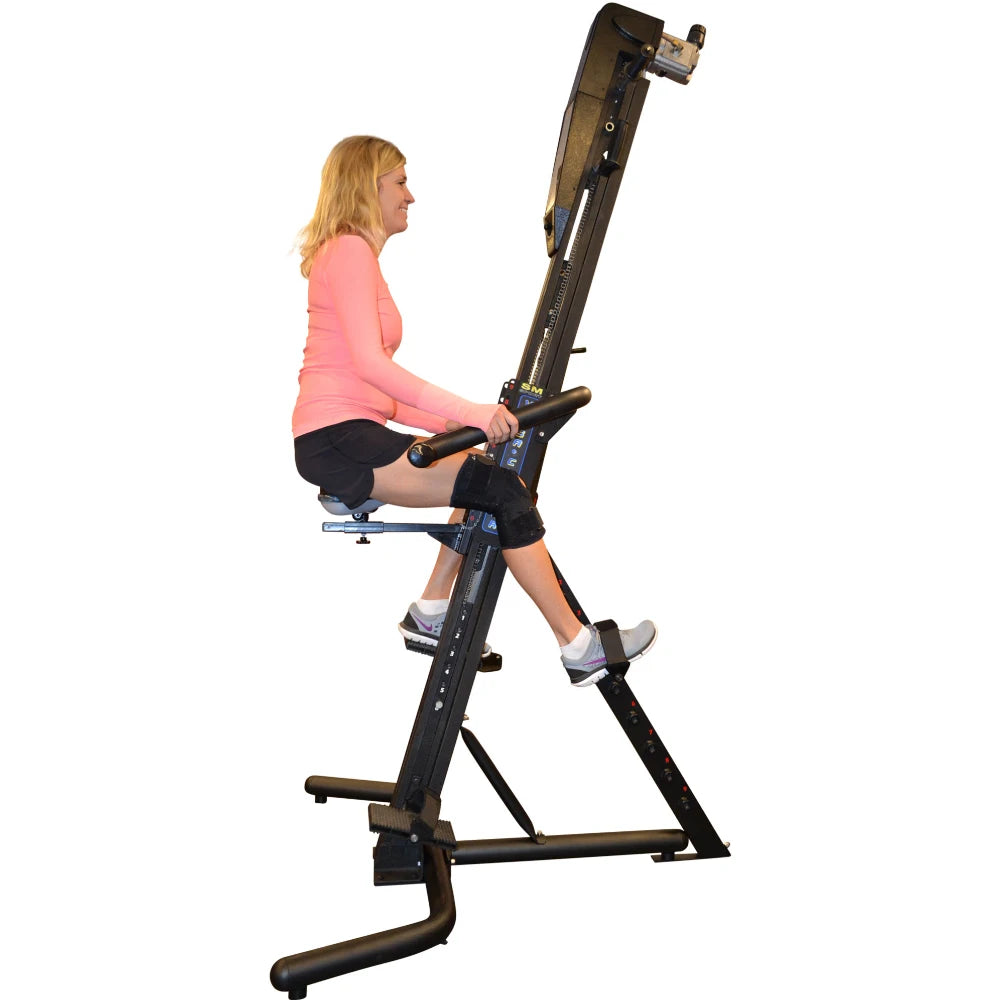

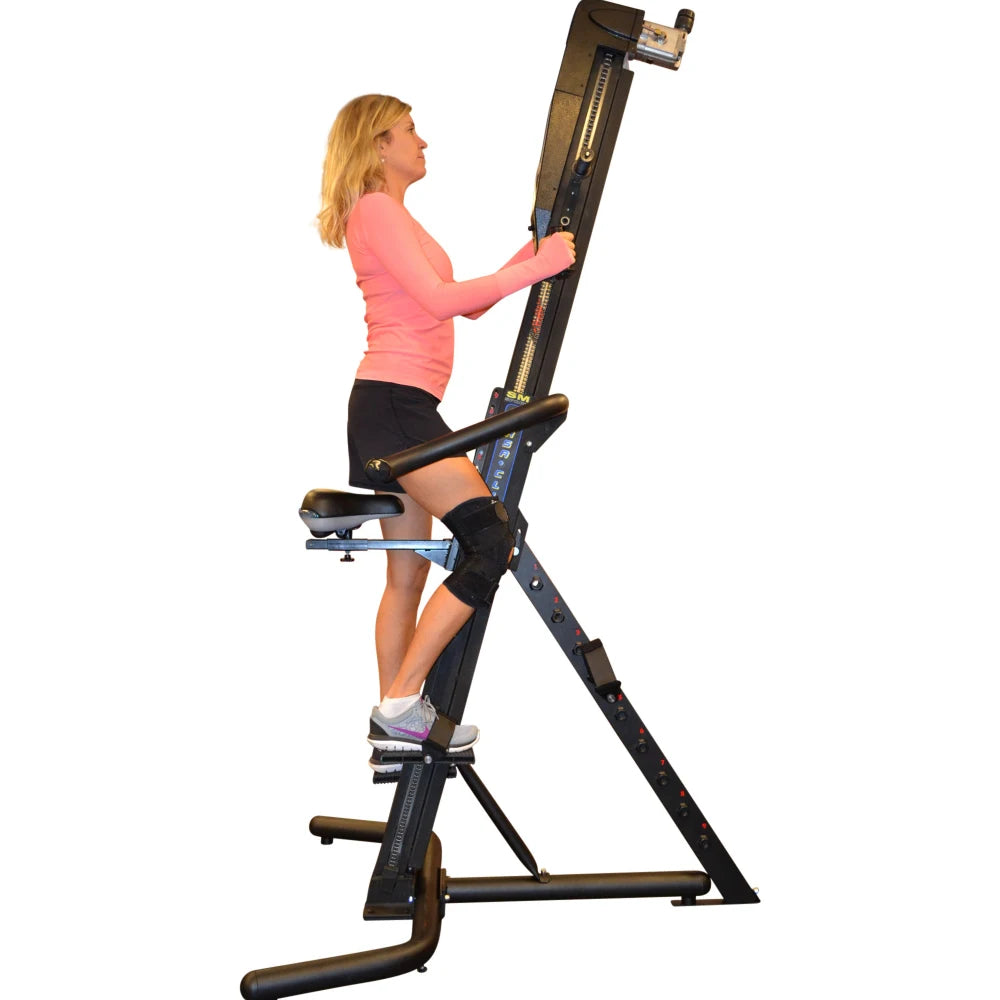

  • VersaClimber SMMRM Sports Rehab – side profile showing adjustable seat and low-impact pedal motion

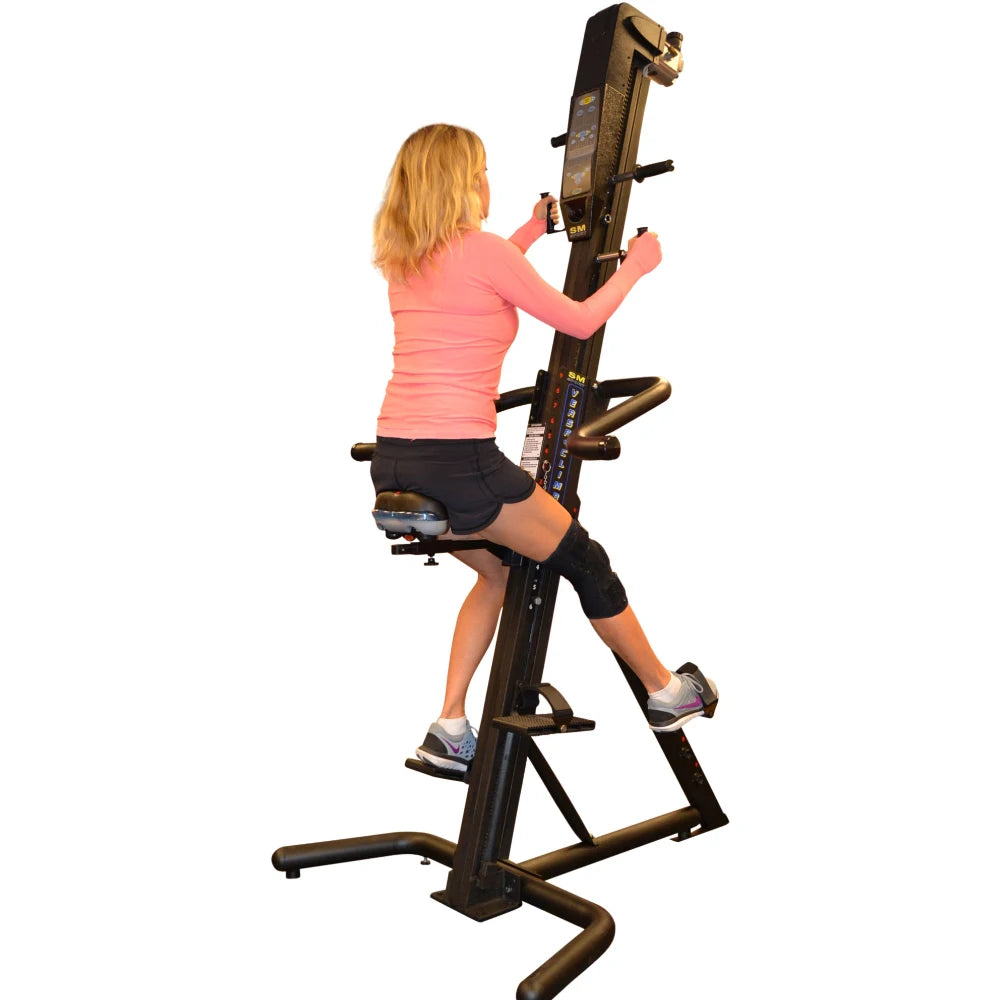

  • VersaClimber SMMRM Sports Rehab – rear angle highlighting dual rail system and smooth magnetic resistance

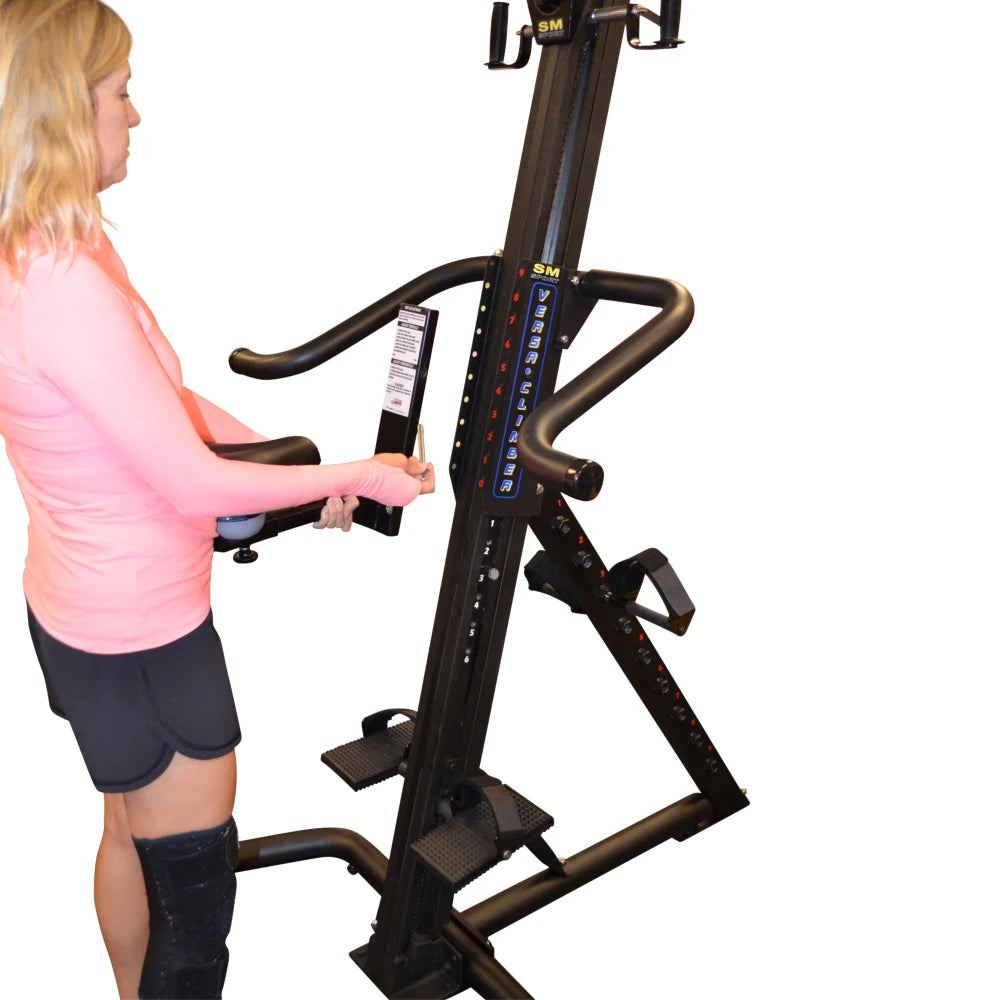

  • VersaClimber SMMRM Sports Rehab – detailed close-up of seat pad and ergonomic rehab hand grips
  • VersaClimber SMMRM Sports Rehab – therapist assisting athlete on rehab climber during recovery session
  • VersaClimber SMMRM Sports Rehab – close view of touchscreen console displaying rehabilitation workout metrics
Rehab Friendly

VersaClimber

VersaClimber Magnetic Sports Rehab

Magnetic rehab climber — seat, leg isolator, 2" ROM limiters, 352 lb max user

185-00-000-SMMRM

$7,495.00 USD
20 in stock
Console

Ships from the manufacturer's US warehouse. Ships by LTL freight · within 1 business day · 3-5 days in transit

Why buy from MFO: who we are, how an order works, and warranty and return help

Order Protection

Choose the payment method that works best for you, whether that’s a credit or debit card, digital wallet, or a flexible payment plan. Every purchase you make at myfitnessoutlet.com is protected by SSL encryption and PCI DSS-compliant security standards.

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

At a Glance

  • Max user: 352 lb
  • Resistance: 11 settings, up to 500 lb
  • Size: 43" x 46" footprint, 7'10" height
  • Weight: 155 lb

Description

Specifications

Performance

Resistance type Magnetic (eddy-current brake)
Resistance levels 11 settings (0-10), up to 500 lb
Max resistance Up to 500 lb (226.8 kg)
Max user weight 352 lb (159.7 kg)
User height range 4'2" - 7'1"
Pedal step height 0-20 in
Arm stroke length 0-20 in
Climb angle 75 degrees

Console

Display SM LCD module (SMMRM) or touchscreen tablet (TSMRM)
Programs Virtual opponents, landmark climbs, heart rate control (SM); app workouts and classes (TS)
Heart rate monitoring Polar chest strap (SMMRM); open BLE straps (TSMRM)
Connectivity WiFi and Bluetooth (TSMRM touchscreen)
App compatibility VersaClimber app (TSMRM touchscreen)

Rehabilitation

Weight-bearing options Non-, partial and full weight-bearing
Range-of-motion stops 2 in increments, 0-20 in
Ankle limiting Locking pedal pin limits flexion to 15 degrees
Seat Adjustable vertically and horizontally

Size & weight

Assembled dimensions 43" x 46" footprint, 7'10" height
Height 7'10" (94 in / 238.8 cm)
Product weight 155 lb (70.3 kg)

Electrical

Power requirement 12V DC, 1.1 A (included 12V/5A adapter, 90-250V AC input)
Power source AC adapter

Construction

Frame Steel
Intended use Commercial
Assembly Two-person assembly; Phillips screwdriver, two 9/16" wrenches, 3/4" wrench

Compliance

Recommended age 16+

Identifiers

Model 185-00-000-SMMRM

Shipping & Delivery

Ships fromThe manufacturer's US warehouse
MethodLTL freight
DeliveryFreight delivery
Handling time1 business day
Transit time3-5 days

Freight deliveries are curbside. The local terminal calls you to book a delivery appointment, so someone needs to be there to receive it.

Warranty

Labor 1 year

Versaclimber Warranty (PDF)

Resources

SRM-Manual Download PDF
TSM-Manual (TS touchscreen console) Download PDF
Manual View online

Return Policy

30-Day Return Policy

Return new, unopened and unused items in their original packaging within 30 days of delivery. A 10% restocking fee applies to all returns, and you pay return shipping. Refunds go to your original payment method.

You can cancel within 24 hours of placing your order.

Read the full Refund Policy

Which is right for you?

STEPR: Higher capacity: supports users up to 375 lb (170.1 kg) vs 352 lb (159.7 kg) here
Helix Recumbent Lateral Elliptical: A seated recumbent option with 20 electronically controlled resistance levels
Helix TheraScoop Lateral Elliptical: Far lighter at 27 lb (12.2 kg) with 8 tension levels — easier to move between rooms

VersaClimber Magnetic Sports Rehab STEPR Helix Recumbent Lateral Elliptical Helix TheraScoop Lateral Elliptical
Price
From $7,495.00 USD
From $3,999.99 USD MSRP $4,999.99 USD
$4,999.00 USD
$279.00 USD
Available in

Console: SM Console, TS Touchscreen

Type: STEPR CLASSIC | LED CONSOLE, STEPR+ | CONNECTED 27" HD TOUCHSCREEN

Capacity
352 lb
375 lb
350 lb
315 lb
Dimensions
43" x 46" footprint, 7'10" height
3.5 ft L x 2.3 ft W
Weight
155 lb
282.19 lb
220 lb
27 lb
Key spec
Rehab: seat, leg isolator, 2" ROM stops
Speed range: 22 – 140 steps per minute
Resistance levels: 20 electronically controlled levels
Resistance levels: 8 distinct tension levels from no tension to high tension
Warranty
1-year labor
10-year frame warranty; 2-year parts warranty; 1-year labor warranty
3-year parts; 5-year parts; 1-year labor when installed in a home gym home gym warranty
10-year frame and structural components; 2-year parts

More Vertical Climbers

All Vertical Climbers (6)

What is the difference between the SMMRM and TSMRM?

Both share the same rehab hardware — seat, lower-limb isolator, range-of-motion travel stops and locking pedals. The SMMRM uses the backlit LCD console with Polar chest-strap heart rate control; the TSMRM adds VersaClimber's WiFi touchscreen tablet with the app, workout history and classes.

Can it be used seated?

Yes. The padded seat pins to the post and adjusts vertically and horizontally. Users can work non-weight-bearing while seated, partially supported by the seat, or standing at full weight-bearing, with the seat available for rest intervals.

How is range of motion controlled?

Travel stops adjust in 2-inch increments from 0 to 20 inches on one or both sides, and a clevis pin in each pedal limits ankle plantar and dorsi-flexion to 15 degrees. The lower-limb isolator holds an immobilized leg while the other limbs work.

What are the user height and weight limits?

Users from 4'2" to 7'1" tall and 65 to 352 lb (29.5–159.7 kg), per VersaClimber's SRM-M manual.

How much resistance does it have?

Magnetic resistance with 11 settings: level 0 is a no-resistance sprint mode, level 1 is the default, and level 10 provides up to 500 lb.

What does setup involve?

Two people, a Phillips screwdriver, two 9/16" wrenches and a 3/4" wrench. The unit is 7'10" tall on a 43" x 46" footprint and runs on the included 12V DC power supply.
