About this product

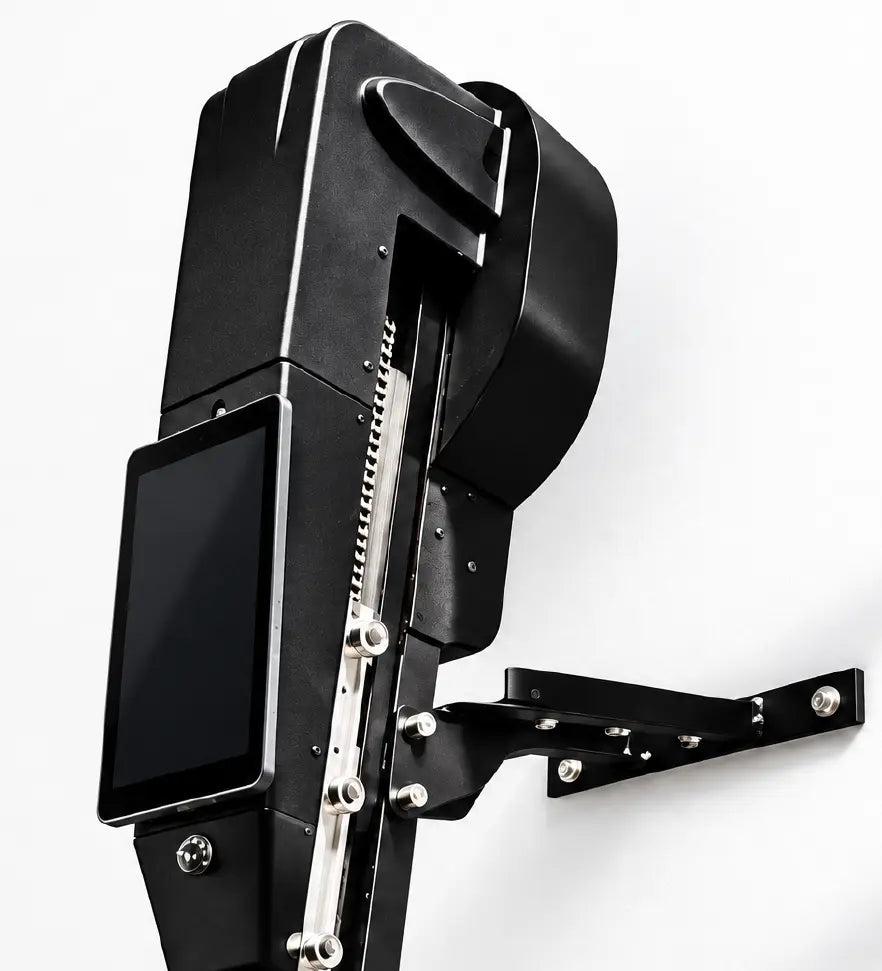

The VersaClimber Wall Mount Bracket Set secures a compatible magnetic VersaClimber (SM-M or TS-M) to a suitable wall. It includes a bracket that bolts to the climber post, a wall bracket with slotted arms for forward/back adjustment, and hardware for general installation into concrete or drywall over wood studs. Choose a straight, left-angle or right-angle position.
Per VersaClimber's instructions, the bracket centerline sits 75" above the floor and the climber's front base holes land about 38" from the wall. On stud walls, lag the bracket into a 2x6 board spanning at least two studs (6 ft or longer for two climbers); on concrete, use the supplied lag shields. The base can optionally be anchored to the floor with two bolts. Wall construction determines installation requirements — consult a contractor if the supplied hardware doesn't suit your wall.

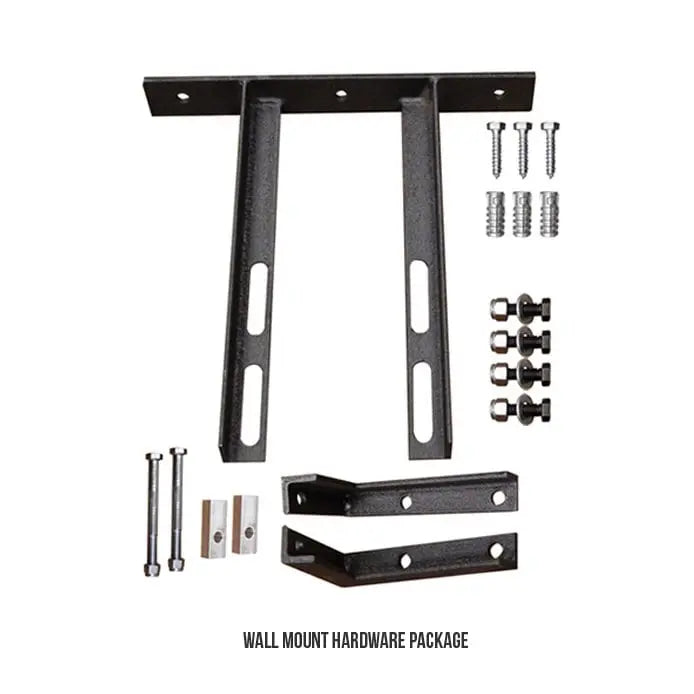

What's included
- Bracket mount for the VersaClimber post
- Wall bracket with slotted adjustment arms
- 2 x 3/8"-16 x 4" hex bolts and 2 lock nuts
- 4 x 3/8"-16 x 1" hex bolts, 8 washers and 4 lock nuts
- 5 x 5/16" x 1-1/2" hex lag screws, 5 lag screw anchors and 5 washers
Features
- For SM-M and TS-M magnetic climbers

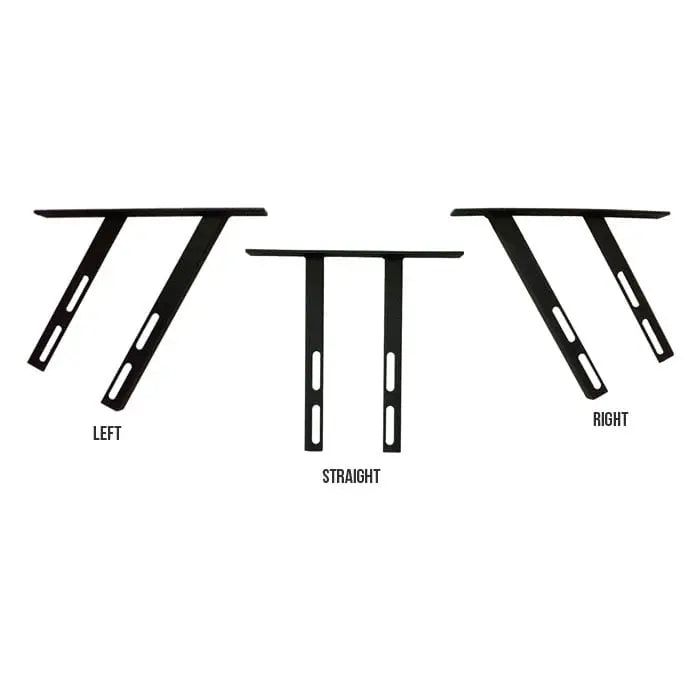

- Straight, left-angle or right-angle installation
- Bracket centerline 75" up; base ~38" from wall
- Hardware for wood-stud or concrete walls
- Slotted arms adjust distance from the wall
Best for
- Small rooms that need floor space back
- Permanent installs in studios, team facilities and clubs
- Rows of wall-mounted climbers along a 2x6 backer
