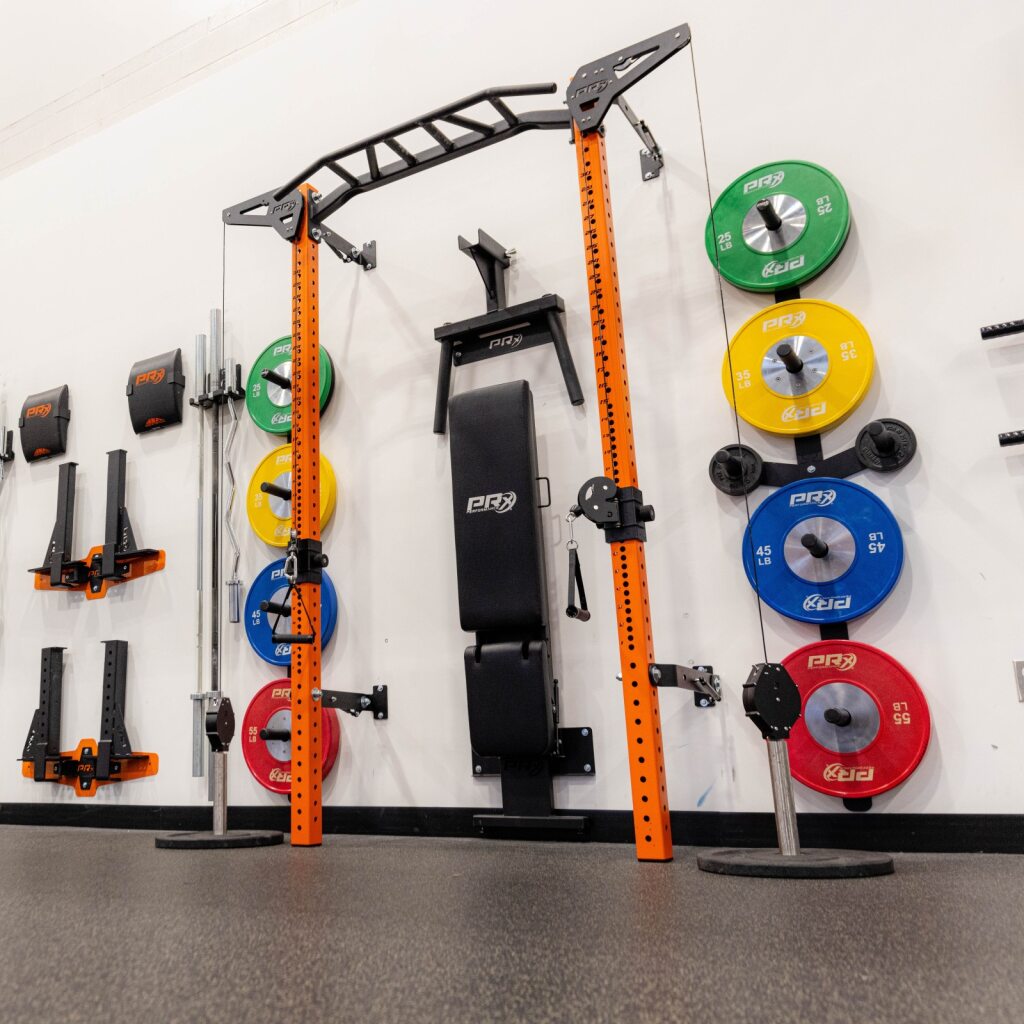

  • Orange squat rack with weight plates mounted on a gym wall.
  • Athlete in gym wearing blue PRx shirt, holding wrist straps in front of weight rack.
  • Man lifting weights in gym beside orange squat rack and stacked plates.
  • Close-up of a PRX gym machine frame with orange post and green weight plate.
  • Person adjusting a clamp on an orange gym rack post.
  • Close-up of a black mechanical device attached to a metal post in a gym.
  • Orange power rack with barbell and weight plate in a gym setting.
  • Orange power rack with weight plates on wall-mounted racks in gym.
  • Man in a blue PRX shirt lifting straps in a gym with colorful weight plates.
  • Man in blue shirt squats at an orange power rack in a gym with colorful weight plates on the wall.
  • Close-up view of a black PRX gym machine frame with orange support and green weight plate.
  • Person adjusting a black industrial clamp on an orange weight rack with numbered marks.
  • Close-up of a black mechanical device mounted on a metal bar in a gym.
  • Industrial gym setup with orange rack, barbell and weight plates.
  • Black and gray cable machine with dual weight stacks, adjustable pulley arms, and triangular handles on both sides for functional training exercises.

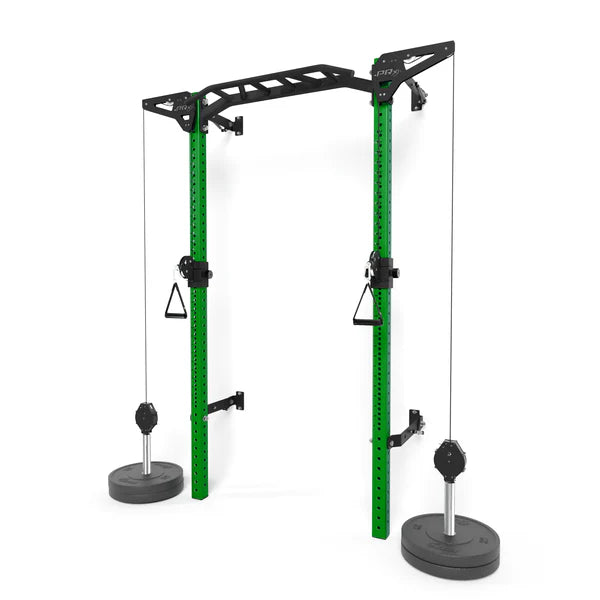

  • Functional trainer with bright green vertical posts, black horizontal top frame, and dual cable stations with triangle handles and weighted bases on white background.

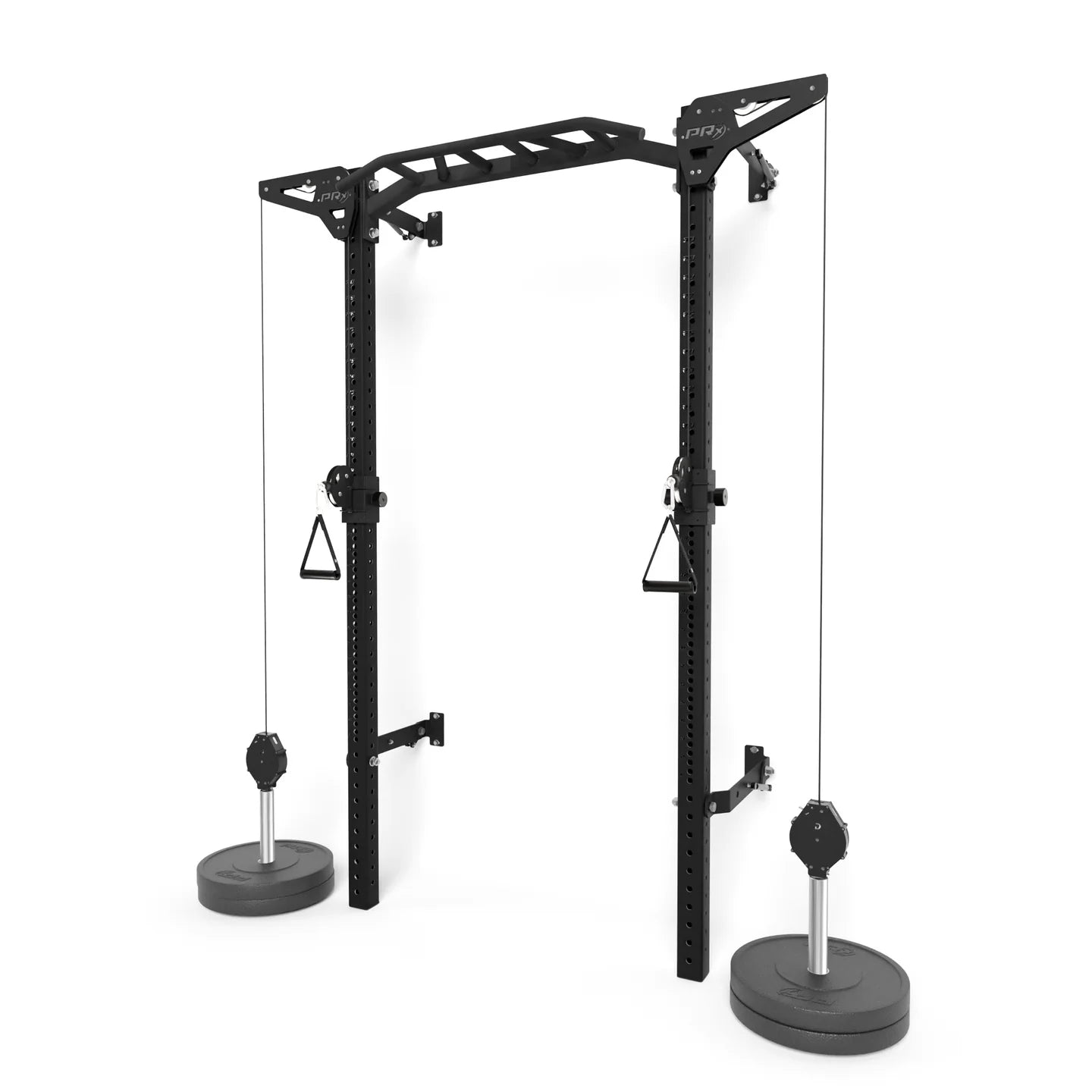

  • Black functional trainer with dual cable stations, perforated steel uprights, adjustable pulleys, and weighted bases on each side.

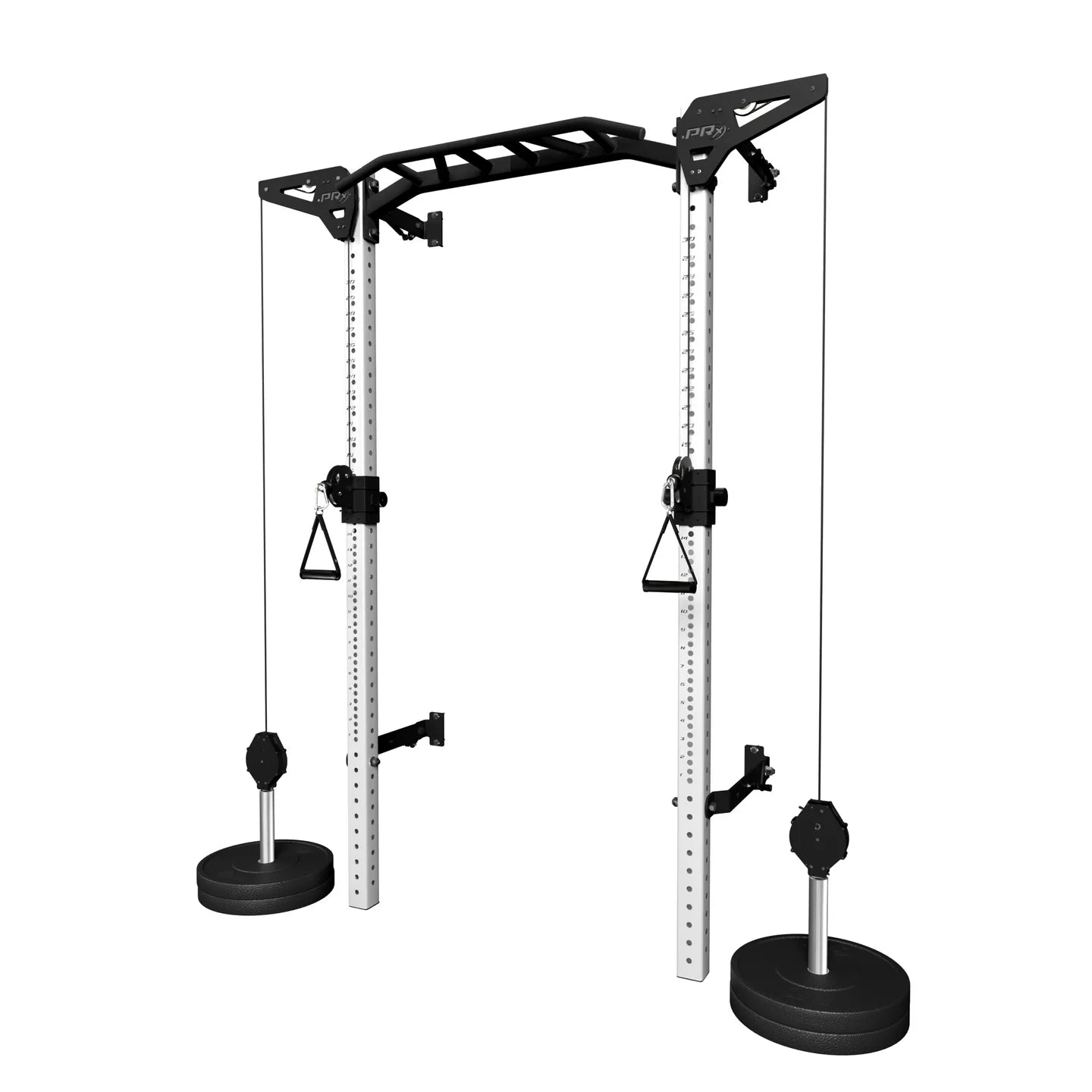

  • Functional trainer with dual cable stations, white upright posts with adjustment holes, black top cross beam, and weight stack bases on each side. Triangle handles hang from adjustable pulleys on both columns.
  • Functional trainer with red vertical posts, black top beam, and dual weight stack systems with cable attachments and triangle handles on each side.
  • Functional trainer with blue vertical posts, black top beam, and dual weight stack stations with triangular handles suspended by cables on each side.

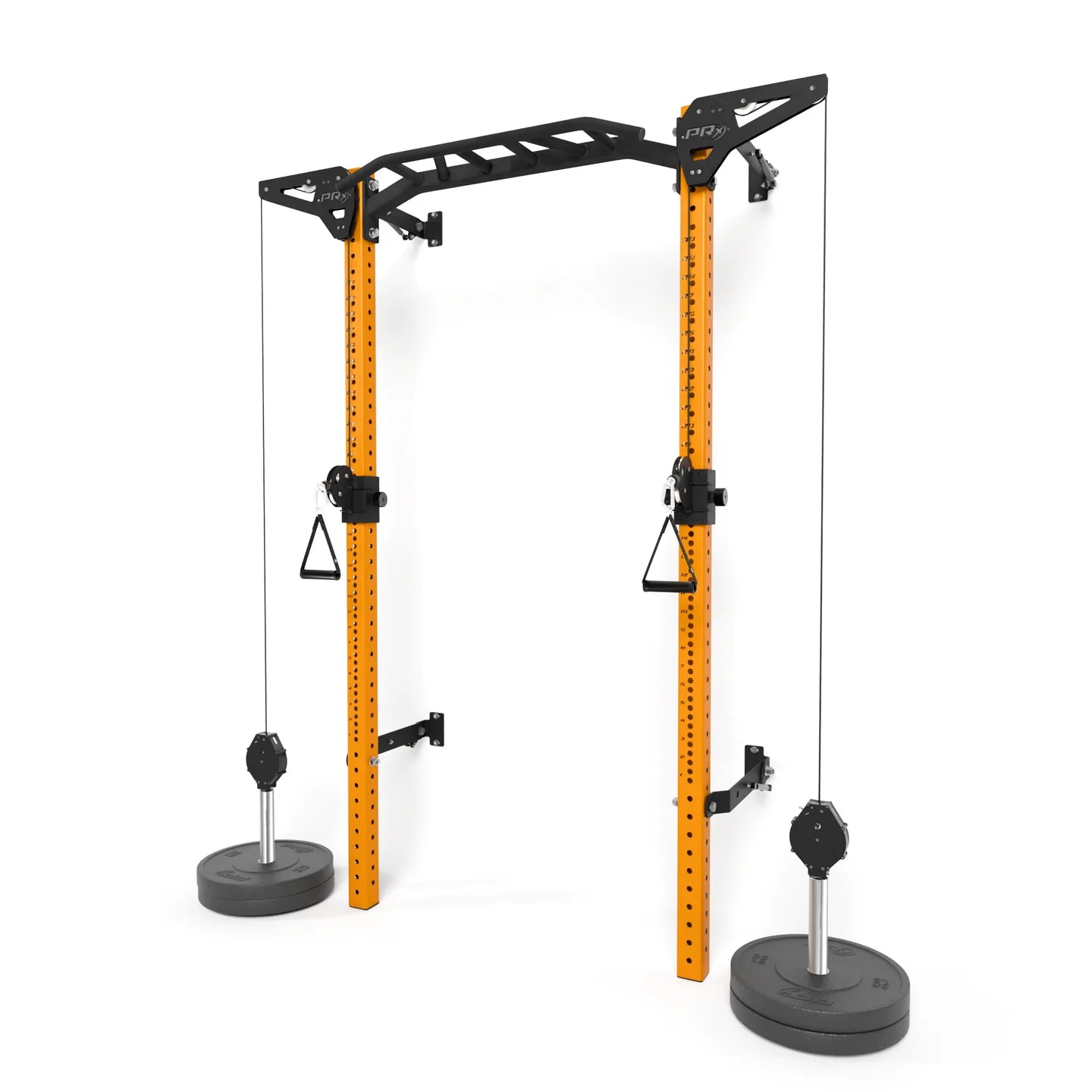

PRx Profile PRO Functional Trainer

PRx Performance

$2,199.99 USD
$2,199.99 USD

PXP503FT

Free Shipping

Upright Height
Color
Pull-Up Bar

Best Price Guaranteed

We’ll match or beat any competitor’s price.

Fast & Free Shipping

Free shipping to all 48 contiguous U.S. states.

Authorized PRx Performance Dealer

Full manufacturer warranties.

Price-Drop Protection

Protected from price drops for 60 days.

Warranty
Support
Shop safely with us

Product Info

Product Label

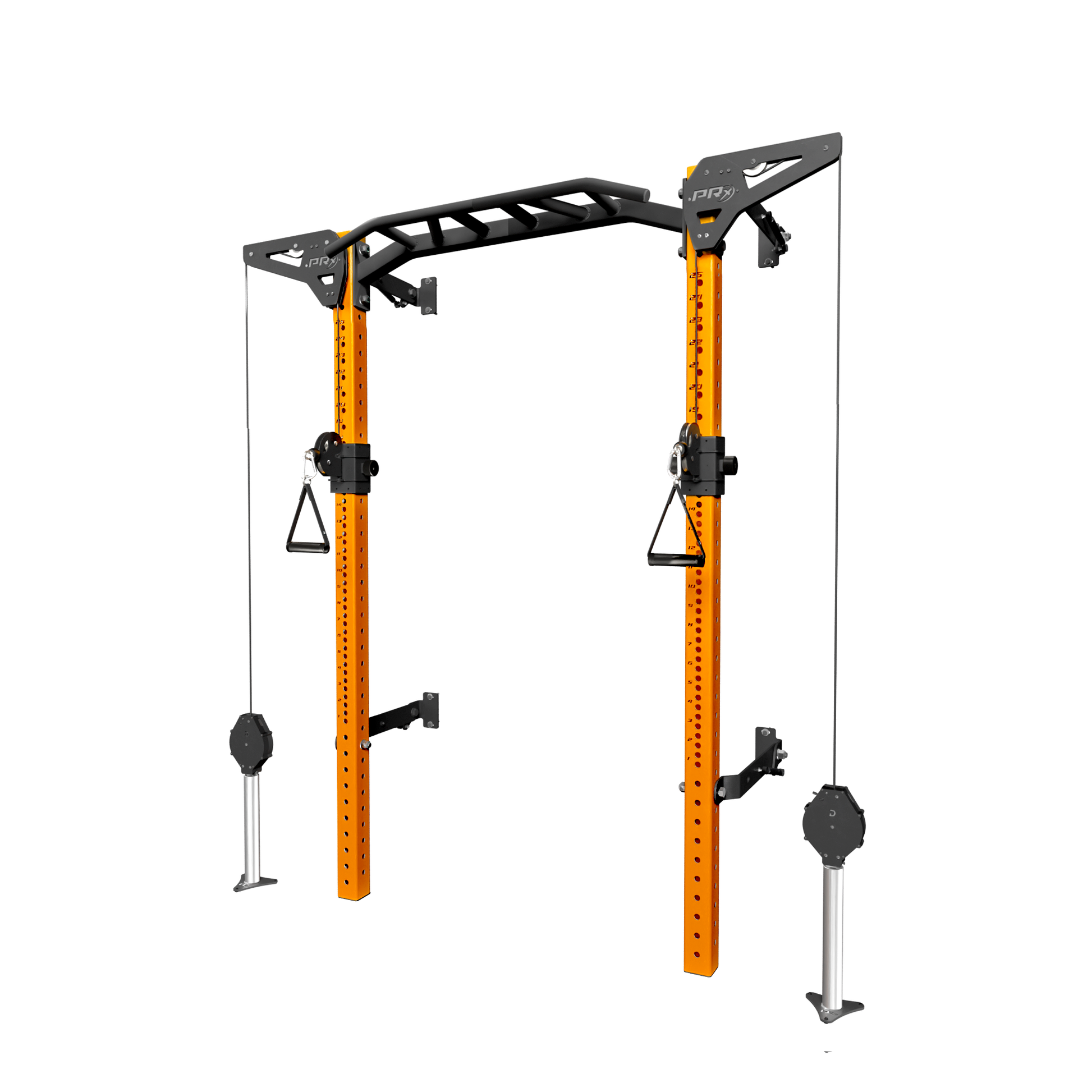

 PRx Profile PRO Functional Trainer + 89" + Orange + Multi-Grip

Item Number

 PRX-090-0

Assembly Difficulty

 Intermediate

Weight

 ~260 lb

Recommended Age

 16+

Resources

Return Policy

30-Day Return Policy

Not loving it? Return most items within 30 days of delivery for a refund or store credit.

Learn More

About PRx Profile PRO Functional Trainer

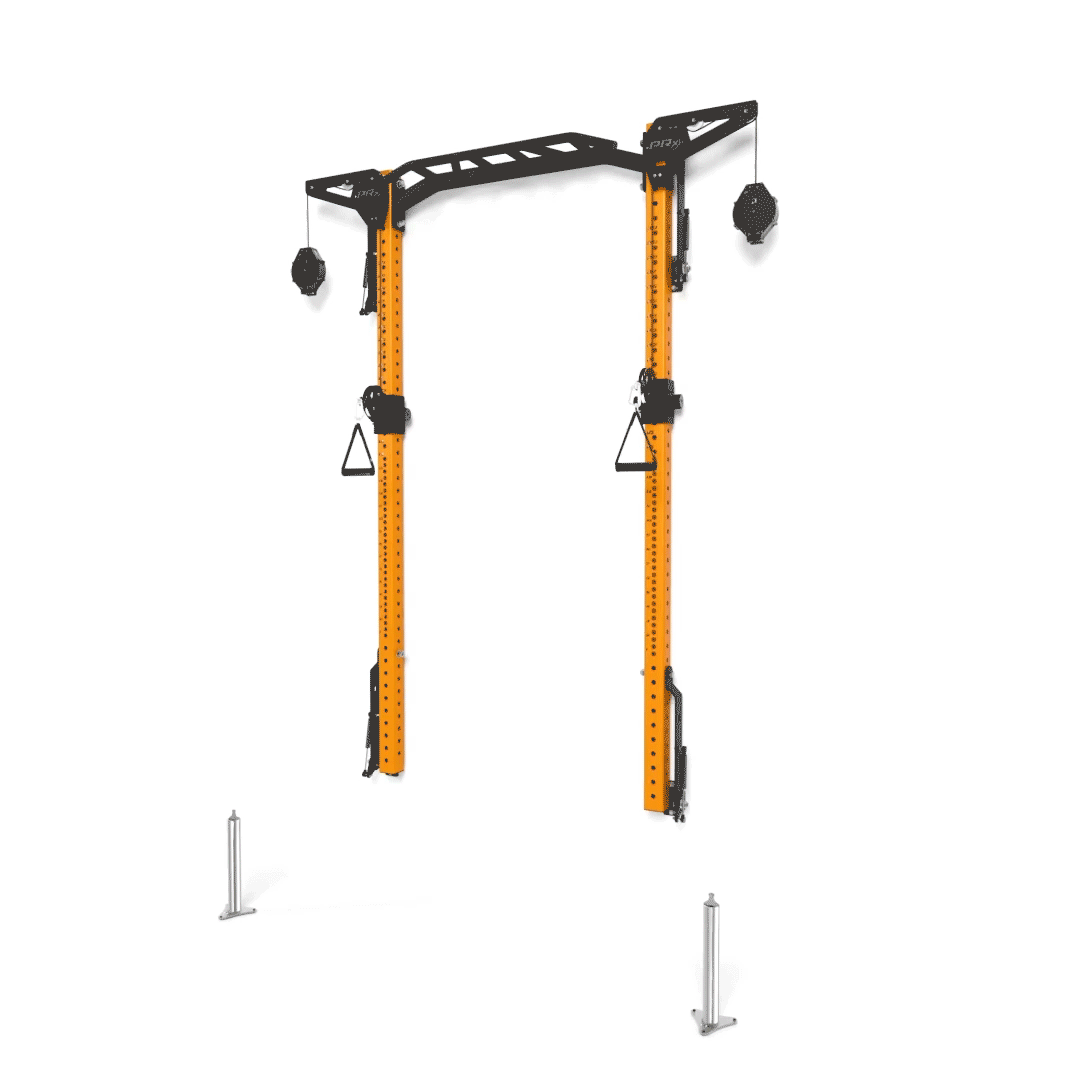

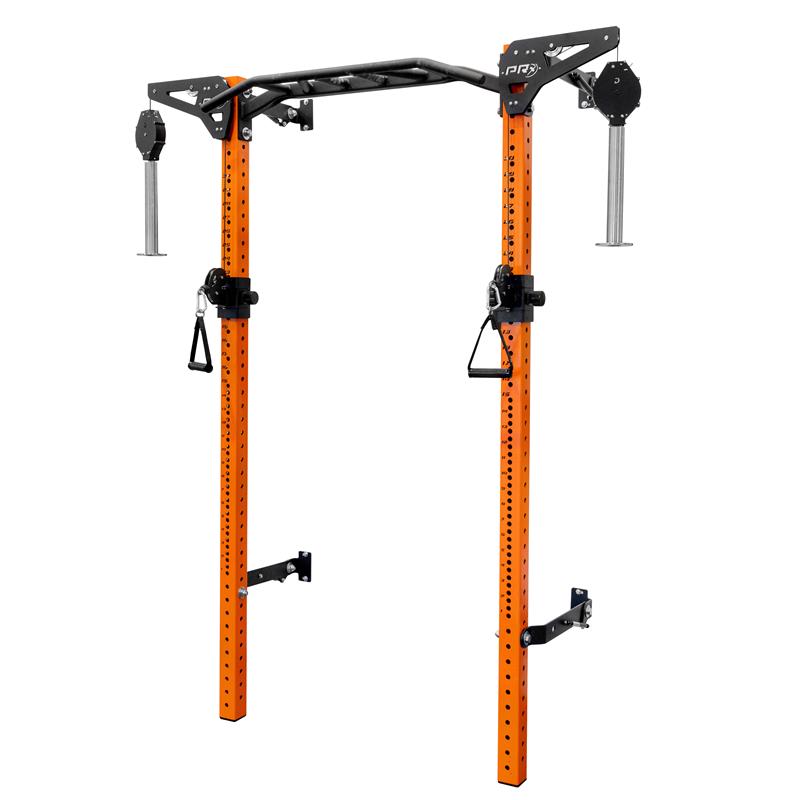

The PRx Profile PRO Functional Trainer combines the patented folding rack system with Dialed Motion’s Sidewinder Cable System to deliver a compact, highly versatile cable training station. Designed to integrate seamlessly with PRx racks, it offers a full range of functional training exercises without taking up additional space.

Full Cable Training in a Compact Design

This system allows you to perform heavy compound lifts and isolation exercises with a 1:1 pulley ratio, providing consistent resistance for everything from lat pulldowns to belt squats. The dual-sided setup saves time by allowing you to work both sides without reconfiguring cables, while the low starting weight supports precision accessory work.

  • 1:1 pulley ratio
  • Dual or single-sided use
  • Supports heavy and light exercises
  • Compatible with multiple attachments

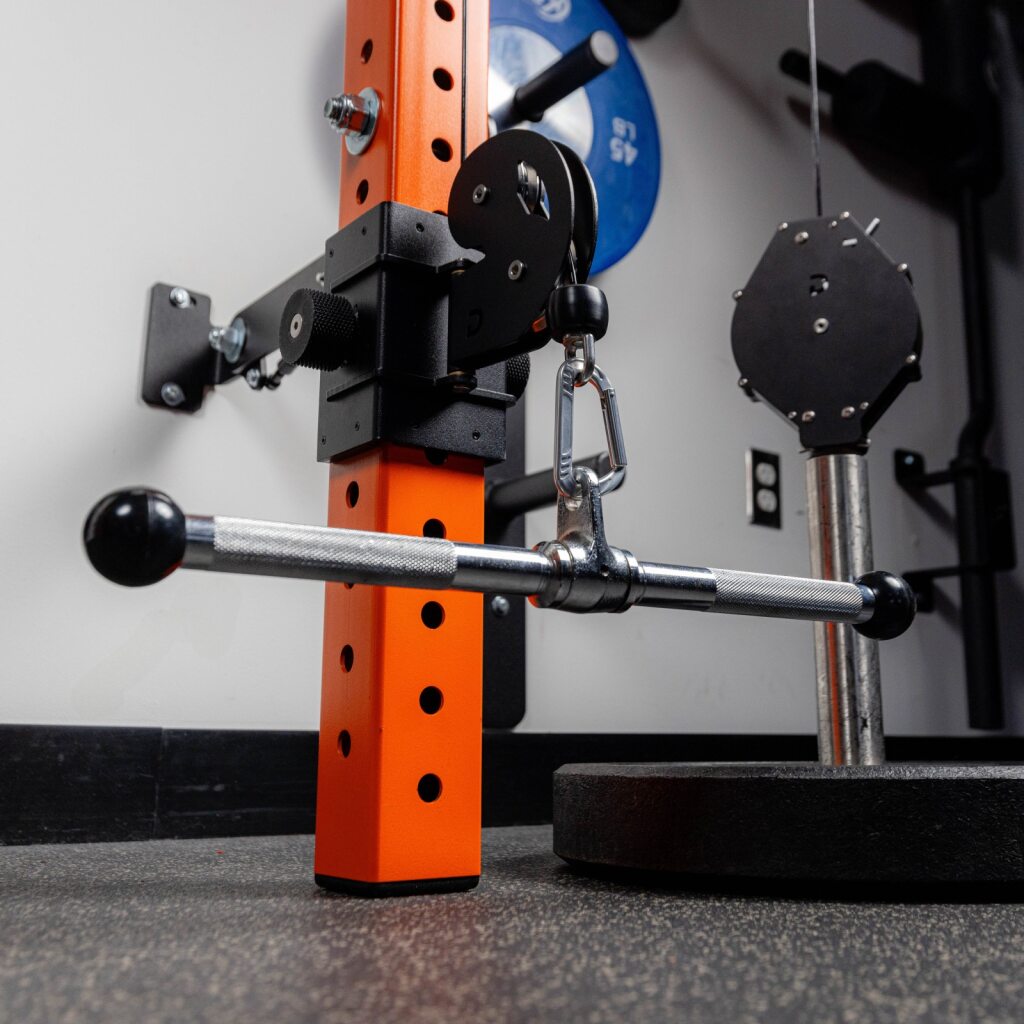

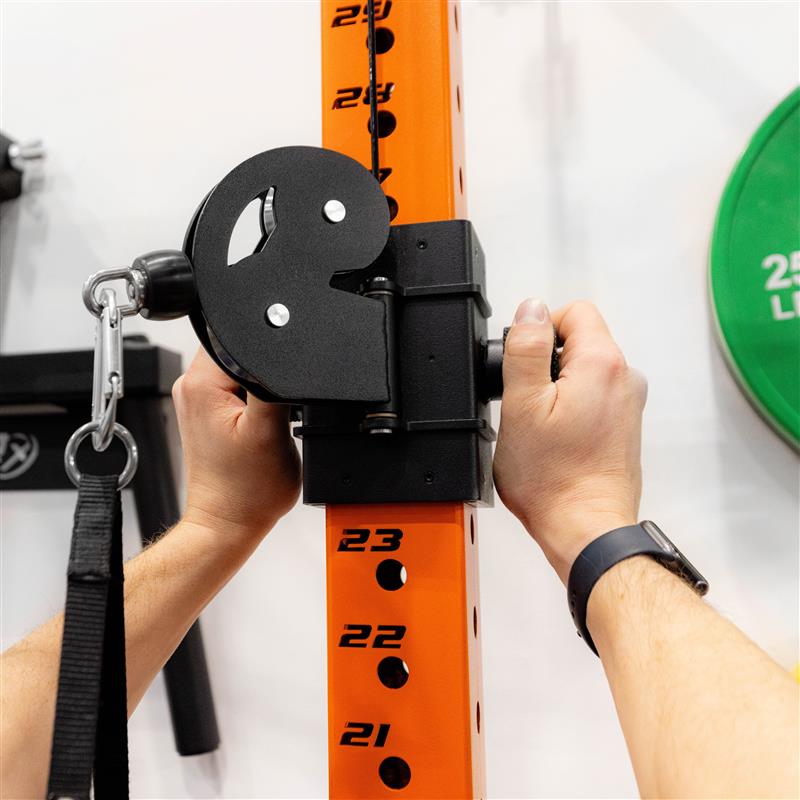

Innovative 3-Sided Trolley

The 3-sided trolley moves smoothly up and down the rack’s uprights, allowing you to position the pulley at any height for different exercises. The double pop-pin system locks it securely in place, and its design allows the rack to still fold flat when not in use, keeping your gym tidy.

  • Moves to any height on uprights
  • Double pop-pin locking system
  • Allows rack to fold flat
  • Easy to adjust during workouts

Endless Exercise Options

With the PRO Functional Trainer, you can target every muscle group using a single compact setup. From leg extensions and curls to rows, presses, and fly variations, it’s designed to replace multiple standalone machines while keeping your workout space clear.

  • Lat pulldowns
  • Low rows
  • Belt squats
  • Chest and reverse flys

Durable American-Made Construction

Like all PRx Profile PRO products, the Functional Trainer is built in the USA from 11-gauge steel and finished with a durable powder coat. This ensures it will perform reliably for years, no matter how demanding your training becomes.

  • Made in the USA
  • 11-gauge steel construction
  • Powder coat finish
  • Built for long-term use

PRx Profile PRO Functional Trainer Specifications

Variant Comparison

Specification95 in Rack89 in Rack81 in Rack
Deployed Dimensions (H×W×D)95 in (241.3 cm) × 73.25 in (186.1 cm) × 23.5 in (59.7 cm)89 in (226.1 cm) × 73.25 in (186.1 cm) × 23.5 in (59.7 cm)81 in (205.7 cm) × 73.25 in (186.1 cm) × 23.5 in (59.7 cm)
Cable Travel70 in (177.8 cm)64 in (162.6 cm)
Highest Trolley Position (Ground to Center of Pulley Sheave)83 in (210.8 cm)77 in (195.6 cm)

Dimensions & Weight

  • Deployed Dimensions (H×W×D): 95 in (241.3 cm), 89 in (226.1 cm), or 81 in (205.7 cm) × 73.25 in (186.1 cm) × 23.5 in (59.7 cm)

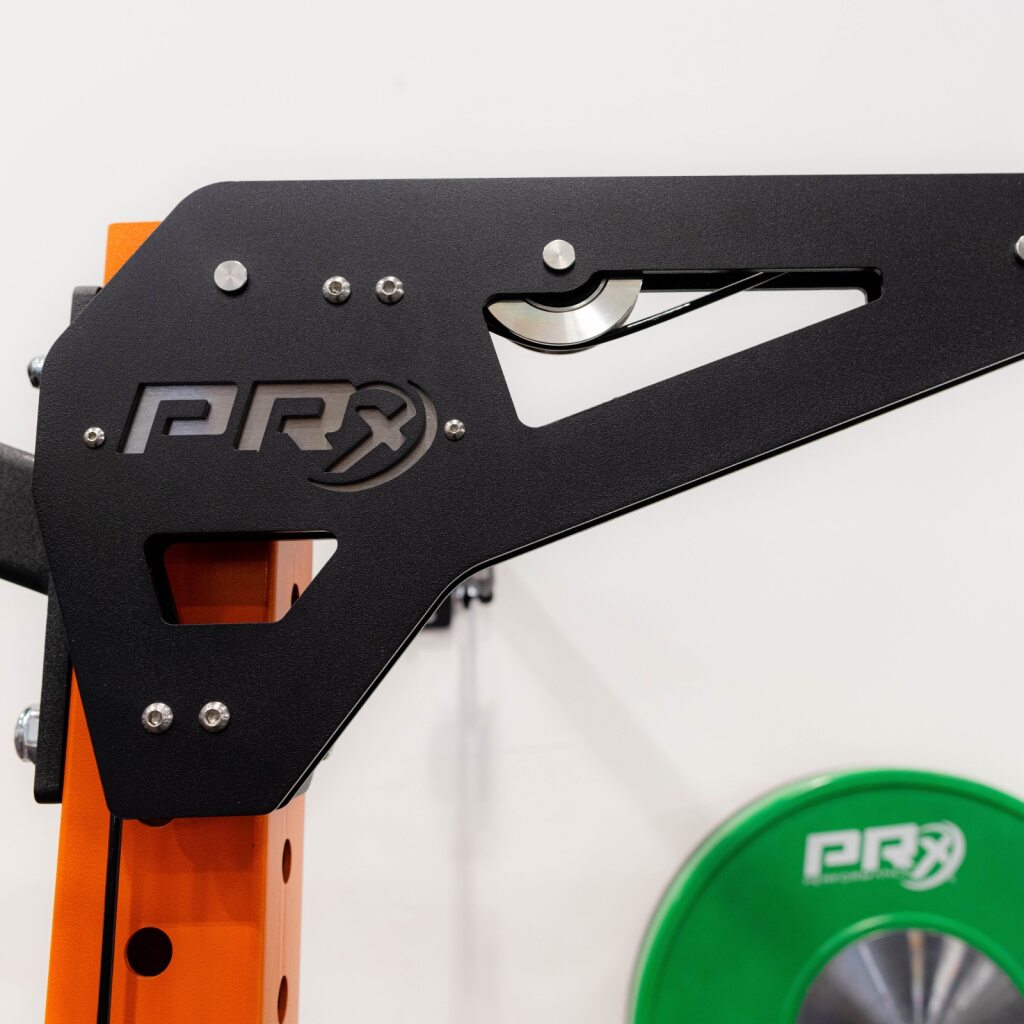

  • Upper Arm Dimensions (H×W×D): 9 in (22.9 cm) × 15.5 in (39.4 cm) × 0.8 in (2.0 cm)
  • Cable Retractor Dimensions (H×W×D): 7.5 in (19.1 cm) × 5.75 in (14.6 cm) × 1.75 in (4.4 cm)
  • Trolley Dimensions (H×W×D): 7.25 in (18.4 cm) × 6.5 in (16.5 cm) × 8.25 in (21.0 cm)
  • Width Between Trolleys (Swivel Points): 45.5 in (115.6 cm)

Materials & Finish

  • Upright Size: 3 in × 3 in (7.6 cm × 7.6 cm)
  • Steel Gauge: 11-gauge steel
  • Finish: Powder coat
  • Available Colors (Rack): 9 options
  • Color (Pulley System): Black
  • Weight Post Material: Stainless steel
  • Pulley Material: Aluminum
  • Upper Arm Plate Thickness: 3.3 mm (0.13 in)
  • Reinforced L-Bracket Thickness: 6 mm (0.24 in)

Performance

  • Max Load (Rack): 1,000 lb (453.6 kg)
  • Max Load (Pulley System): 250 lb (113.4 kg)
  • Pulley Ratio: 1:1
  • Cable Travel (95 in Rack): 70 in (177.8 cm)
  • Cable Travel (89 in Rack): 64 in (162.6 cm)
  • Highest Trolley Position (95 in Rack): 83 in (210.8 cm) from ground to center of pulley sheave
  • Highest Trolley Position (89 in Rack): 77 in (195.6 cm) from ground to center of pulley sheave
  • Lowest Trolley Position: 5 in (12.7 cm) from ground to center of pulley sheave (when sold with V3 uprights)

Hole Size & Spacing

  • Hole Size: 5/8 in (1.59 cm)
  • Hole Spacing: Front and side: 2 in (5.08 cm); front bench area: 1 in (2.54 cm)
  • Specialty Hole Spacing: West-side

Resistance/Drive/Mechanism

  • Pulley Size: 2.5 in (6.4 cm)
  • Cable Thickness: 4 mm (0.16 in)
  • Weight Post Total Length: 15.5 in (39.4 cm)
  • Weight Post Usable Length: 13.75 in (34.9 cm)
  • Distance (Weight Post Center to Wall, Standard Installation): 23 in (58.4 cm)
  • Distance (Standard Weight Plate Edge to Wall, When Used on PFT): 13.75 in (34.9 cm)

Features

  • Trainer Configuration: Dual- or single-side functional trainer configuration
  • Trolley Design: 3-sided trolley for full upright travel
  • Trolley Positioning: Magnetic and removable trolley positioning

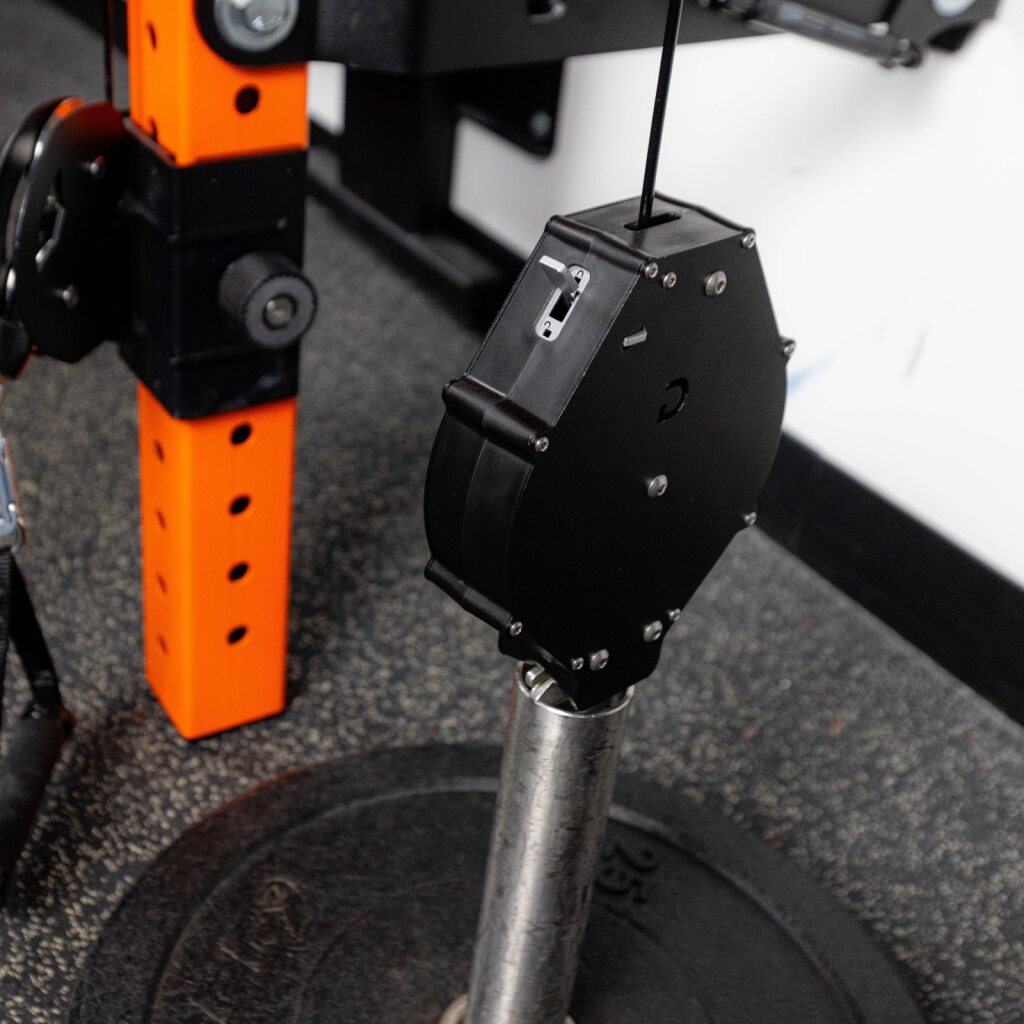

  • Cable Management: Cable Retractor maintains constant cable tension
  • Pull-up Bar Options: Straight, multi-grip, kipping
  • J-Cups: Included
  • J-Cup Plastic: Yes
  • Compatibility: Axis Pad; Knee Keeper; Leg Curl/Extension; Incline Weight Bench
  • Mounting Hardware: Included

Installation & Space

  • Required Tools: 15/16 in open end wrench or socket wrench (x2); 1/2 in open end wrench (x2); 7/16 in open end wrench; 5 mm L-key (included); 4 mm L-key (included); T10 Torx L-key (included)
  • Storage Requirements: Trolley must be positioned within the designated safe area to avoid collision with linkage arms; disconnect load pin and position the cable retractor at the top (just underneath the upper arm) before folding the rack

Compliance & Safety

  • Safety Warnings: Read all assembly, installation, and use instructions prior to use; keep body and clothing clear of moving parts; inspect prior to use (do not use if damaged or inoperable); use only for intended use (do not modify); do not attempt to fix broken equipment

In the Box

  • Standard Attachments: Knurled D-handles
  • Included Parts: Upper Arm Assembly (Qty 1); Trolley Assembly (Qty 1); Pulley Block Assembly (Qty 1); Load Pin (Qty 1); Cable Retractor (Qty 1); Upper L Bracket (Qty 1); Lower L Bracket (Qty 1); Gas Shock (Qty 1); D-Handle (Qty 1); Carabiner (Qty 1); M6-1×16 Button Head Screw (Qty 4); 5/8 in Locknut for Kipping Bar (Qty 1); 5/8 in Flat Washer for Kipping Bar (Qty 1); Metal Bushing (Qty 1)

  • PRx Profile PRO Functional Trainer (rack with integrated cable system)
  • (2) J-cups
