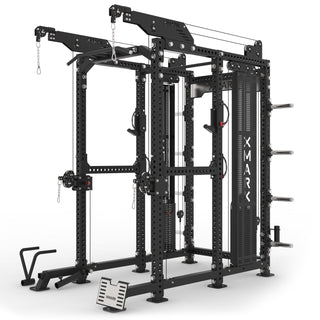

XMARK Commercial Power Rack Cable Machine

Dual 220 lb stacks, 1:1 / 2:1 pulleys, 91 × 55 × 101 in cable power rack

$4,869.00 USD

XM-9153

Low stock! Only 4 left

SHROUD WITHOUT SHROUD WITH SHROUD

Factory-direct shipping. Exact cost at checkout. Ships by LTL freight · within 1 business day · 3-5 days in transit

Financing: Pay over time with Shop Pay Installments on orders from $35 to $30,000, subject to eligibility. Financing options
Delivery and assembly: Curbside delivery is standard. Threshold and White Glove delivery cost extra and are offered on select products. Need it assembled? Assembly Services connects you with vetted local installers by ZIP code.
Returns: New, unopened and unused items in their original packaging, within 30 days of delivery. A 10% restocking fee applies, and you pay return shipping. Refund Policy

Buying for a gym, school or other facility? Request a quote. Purchase orders and Net 30 terms for qualified organizations.

Competitive Price Guarantee
Shipping Priced Upfront
Authorized XMARK Dealer

Support

At a Glance

Weight stacks: 220 lbs each
Pulley ratio: Lat Pull - 1:1 / Low Row - 2:1
Assembled size: 91 × 55 × 101 in
Height: 101 in
Cable travel: Low Row – 51.5", Lat Pull – 103"
Machine weight: 1345 lbs

Description

About this product

The XM-9153 combines a full power rack with dual 220 lb (99.8 kg) weight stacks — 440 lb (199.6 kg) total. The lat pulldown runs at a 1:1 pulley ratio, the low row at 2:1, with cable travel of 103 in (261.6 cm) and 51.5 in (130.8 cm). Pulleys are premium aluminum; the frame is 3 × 3 in, 11-gauge steel with a matte black baked-on powder-coat finish.

J-cups, flip-down safeties, and front foot extensions are included. Assembled, the unit measures 91 × 55 × 101 in and weighs 1,345 lb (610.1 kg). It ships by LTL freight within 1 business day. The mainframe carries a lifetime warranty; wearables are covered for 2 years.

What's included

Power rack with 3" x 3" 11-gauge steel mainframe
Dual 220-pound weight stacks
Two trolleys with pulley systems
Eight stainless-steel weight storage posts
Stainless-steel low row footplate
Flip-down safeties
J-cups
Front foot extensions
Arched multi-grip pull-up bar
1.25" diameter straight pull-up bar
Aluminum curl bar
Aluminum lat bar
Aluminum straight bar
Aluminum V-bar
Chinning triangle
Padded leg cuffs
Two single handles
Tricep rope
Landmine attachment
Aluminum pulleys

Features

Dual 220 lb (99.8 kg) weight stacks — 440 lb (199.6 kg) total
1:1 lat pulldown and 2:1 low row pulley ratios
91 × 55 × 101 in assembled; 101 in (256.5 cm) overall height
Cable travel: 103 in (261.6 cm) lat pull, 51.5 in (130.8 cm) low row
1,345 lb (610.1 kg) machine weight, 3 × 3 in 11-gauge steel frame
Lifetime mainframe warranty, 2 years on wearables

Best for

Lifters who want a power rack and cable station in one 91 × 55 in footprint
Buyers who want 1:1 lat pulldown resistance with 103 in (261.6 cm) of cable travel for full-range pulls
Rooms with clearance for a 101 in (256.5 cm) tall, 1,345 lb (610.1 kg) machine

Specifications

Resistance

Weight stacks	220 lbs each
Total stack weight	440 lbs
Pulley ratio	Lat Pull - 1:1 / Low Row - 2:1
Cable travel	Low Row – 51.5", Lat Pull – 103"
Highest pulley point	80.5"
Lowest pulley point	11.5"

Size & weight

Assembled (L × W × H)	91 × 55 × 101 in (231.1 × 139.7 × 256.5 cm)
Length / depth	91 in (231.1 cm)
Width	55 in (139.7 cm)
Height	101 in (256.5 cm)
Machine weight	1345 lbs (1365 lbs with shrouds)

Construction

Frame	3" x 3", 11-gauge steel tubing
Finish	Matte black baked-on powder coat
Pulleys	Premium aluminum
Hardware	Oversized 1" industrial-strength bolts
Included	J-cups, flip-down safeties, front foot extensions

Use

Use type	Commercial

Compliance

Recommended age	16+

Identifiers

Model	XM-9153
UPC	846291034092

Shipping & delivery

Method	LTL freight
Delivery	Freight delivery
Ships from the manufacturer in	1 business day
Time in transit	3-5 days

Freight deliveries are curbside. The local terminal calls you to book a delivery appointment, so someone needs to be there to receive it.

Warranty

Mainframe	Lifetime
Wearables	2 years

Xmark Warranty (PDF)

Resources

We don’t have manuals or documents listed for this product yet. Please contact us for more information.

Return Policy

30-Day Return Policy

Return new, unopened and unused items in their original packaging within 30 days of delivery. A 10% restocking fee applies to all returns, and you pay return shipping. Refunds go to your original payment method.

You can cancel within 24 hours of placing your order.

Read the full Refund Policy

XMARK Commercial Power Rack Cable Machine

$4,869.00 USD

Which is right for you?

XMARK Functional Trainer with Dual 230 lb Weight Stacks: Dual 230 lb stacks and a 90 in height fits lower ceilings
XMARK Commercial Half Rack Functional Trainer: Same dual 220 lb stacks in a 57 × 55 in footprint if space is tight
XMARK Commercial Single-Stack Functional Trainer: 373 lb machine weight and a 51 × 49 in footprint if you don't need the built-in rack

	XMARK Commercial Power Rack Cable Machine	XMARK Functional Trainer with Dual 230 lb Weight Stacks	XMARK Commercial Half Rack Functional Trainer	XMARK Commercial Single-Stack Functional Trainer
Price	Regular price From $4,869.00 USD	Regular price $2,920.00 USD	Regular price From $4,219.00 USD	Regular price $2,059.00 USD
Available in	SHROUD: WITHOUT SHROUD, WITH SHROUD	Not listed	SHROUD: WITHOUT SHROUD, WITH SHROUD	Not listed
Capacity	220 lbs each	230 lbs each	220 lbs each	220 lbs
Dimensions	91 × 55 × 101 in	33 × 61.5 × 90 in	57 × 55 × 101 in	51 × 49 × 101 in
Weight	1345 lbs	1,003 lb	1014 lbs	373 lbs
Key spec	Pulley ratio: Lat Pull - 1:1 / Low Row - 2:1	Not listed	Type: Commercial Half Rack Functional Trainer	Pulley ratio: 2:1
Warranty	Lifetime mainframe; 2-year wearables	Lifetime mainframe; 2-year wearables	Lifetime mainframe; 2-year wearables	Lifetime mainframe; 2-year wearables

Questions buyers ask

What is the pulley ratio on this machine?

The lat pulldown runs 1:1 and the low row runs 2:1. Cable travel is 103 in (261.6 cm) on the lat pull and 51.5 in (130.8 cm) on the low row.

How much weight does each stack hold?

Each of the two stacks holds 220 lb (99.8 kg), for 440 lb (199.6 kg) total.

What ceiling height do I need?

The assembled unit stands 101 in (256.5 cm) tall, and the highest pulley point sits at 80.5 in (204.5 cm). Measure your space against those two figures.

How does this machine ship?

It ships via LTL freight delivery within 1 business day, with 3–5 days transit. No installation option is offered.

What's covered under the warranty?

The mainframe is covered for life and wearables for 2 years. Full terms are in the Xmark Warranty PDF linked on this page.

What attachments come included?

J-cups, flip-down safeties, and front foot extensions are included with the machine.
